5 Types of Drywall and the Use Cases for Each One

Drywall is a popular material for interior walls and ceilings, but did you know there are multiple types of drywall? Drywall comes in several different varieties, sizes, and textures, and choosing the right type for your specific project is critical for longevity and appearance. In this guide, we cover five types of drywall, including standard, moisture- and fire-resistant, soundproofing, and VOC-absorbing, and how to pick the best type and size for your next home project.

What Is Drywall?

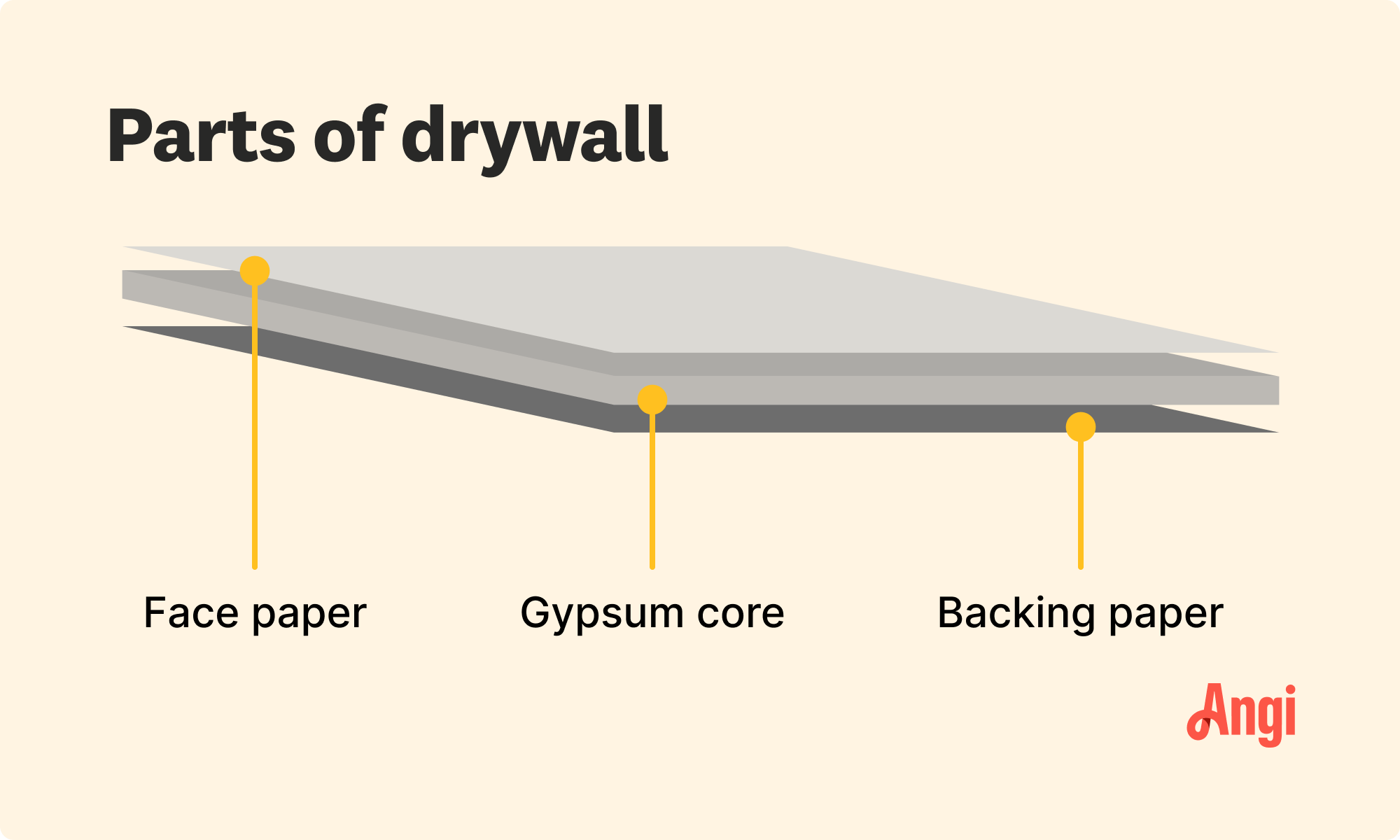

Drywall is one of the most common building materials in home construction and is most likely what makes up your walls and ceilings. Drywall consists of dried and compressed gypsum between two sheets of thick paper. Drywall is sometimes referred to as gypsum board, wall board, or Sheetrock®, the last of which is actually a name brand.

Gypsum is a powdery mineral found naturally and mined before appearing in fertilizer, chalk, drywall, and various other products. When dried in drywall production, it creates a rigid board that remains easy to cut and shape, making it ideal for wall construction. The paper facing provides a smooth surface to receive paint.

Drywall is the most common material for walls and ceilings for a few reasons:

• It adds some rigidity to the walls of a home.

• It’s lightweight, making it easy to install.

• It’s relatively affordable while still being durable.

• It’s naturally flame-resistant.

• It can be moisture-resistant for bathrooms and kitchens.

• It’s widely available.

• It’s easy to cut to fit interior spaces.

• It provides a perfectly flat surface to receive primer and paint.

There are also a few different types of drywall for various applications in home construction, making it more versatile than other materials.

1. Regular Drywall (White Board)

White or light gray in color, “white board” is standard drywall that is 1/2-inch thick. The sheets also come in other thicknesses for different uses. Below are the common drywall thicknesses and what each is most useful for:

• 1/4-inch thickness: This thickness is best for a curved surface that requires bending the drywall. A local drywall contractor can wet the material so it bends more easily, then install it on the curved surface. This thickness is also suitable for installing over existing damaged drywall.

• 3/8-inch thickness: This thickness is also suitable for curved walls or for repairing damaged drywall. It was once the standard for interior walls.

• 1/2-inch thickness: This is now the standard for sheetrock thickness for interior walls. It adds more structural support to the wall and resists bowing and bending a bit better.

• 5/8-inch thickness: This is a good option for affordable room soundproofing or sound dampening, so if you’re in an apartment or have a noisy house, this is a good option. It’s also the most common thickness for ceilings, as it resists sagging over time.

• 3/4-inch thickness: This is ideal for soundproofing rooms. It’s expensive but provides the most structural support and resistance to warping.

You can get regular drywall at your local home improvement store that comes in 4-by-8-foot sheets. If you need it for patching, you can find it in smaller sizes, like 2-by-2-foot pieces. Regular drywall costs about $15 per panel, or between $0.30 and $1 per square foot.

Best for: Living rooms, bedrooms, and hallways

2. Moisture- and Mold-Resistant Drywall

If you’re looking for drywall that’s moisture-resistant or moistureproof, you have several different options to choose from.

Green Board Drywall

Green board is one of the best drywall options for kitchens, bathrooms, basements, and attics. It’s also mold-resistant and comes in 1/2-inch or 5/8-inch thicknesses. Its mold-resistant properties come from thicker layers of green paper on the outside of the gypsum and a wax coating over the paper. While it is durable, it’s not waterproof or fire-resistant. Green board drywall installation costs around 20% more than regular drywall.

Blue Board Drywall

Named for its outer coating of formulated blue paper, blue board drywall is a highly moisture-resistant form of drywall that works best in bathrooms and basements. It still has the inner layer of gypsum, which can soak up water and water vapor, but the outer blue paper is treated for moisture resistance. It’s still not waterproof, so blue board is designed only for indoor use.

Fiberglass or Paperless Drywall

In recent years, developers have started making a new type of drywall that uses fiberglass mesh for the outer layers instead of paper. There’s still a gypsum center, but the fiberglass coating makes it more resistant to both mold and moisture.

Purple Board Drywall

Purple board drywall is the most resistant to moisture and mold, so much so that it’s suitable to use on the exterior of buildings. Purple board is also a highly fire-resistant drywall. This type of drywall is best for ceilings and walls that need moisture protection, but also for high-traffic areas because it is dent and scratch-resistant. Purple board drywall costs about 30% more than regular drywall.

It’s worth mentioning that purple board is a specific product manufactured by Gold Bond® and not a generic drywall option.

Best for: Bathrooms, kitchens, finished basements, and laundry rooms

3. Fire-Resistant Drywall

If you need drywall that’s fire-resistant, you’ve got a couple of choices to pick from.

Type X Drywall

Type X drywall has a fire-resistant gypsum center and two layers of paper, one regular and one liner-backed. This is a thicker board at 5/8 inches, so it’s a little more difficult to cut through. But because it’s thick, it’s also good for dampening sound. Type X drywall has to pass a one-hour fire-resistance test and is a good option for walls in apartment buildings, garages, boiler rooms, and other areas with an increased risk of fire.

Type C Drywall

Type C drywall matches Type X drywall in thickness, but it contains more glass fibers in the gypsum core to provide better flame resistance. Type C is an amped-up version of Type X, so it’s more fire-resistant. Type C is about 10% more expensive than Type X. You’ll find Type C drywall in all the same rooms as Type X, like apartment buildings, garages, and boiler rooms. However, it’s better for use on the ceilings, as flames rise and pose more of a threat to drywall installed on the ceiling.

Best for: Garages, apartment buildings, and helping prevent ceilings from collapsing in a fire

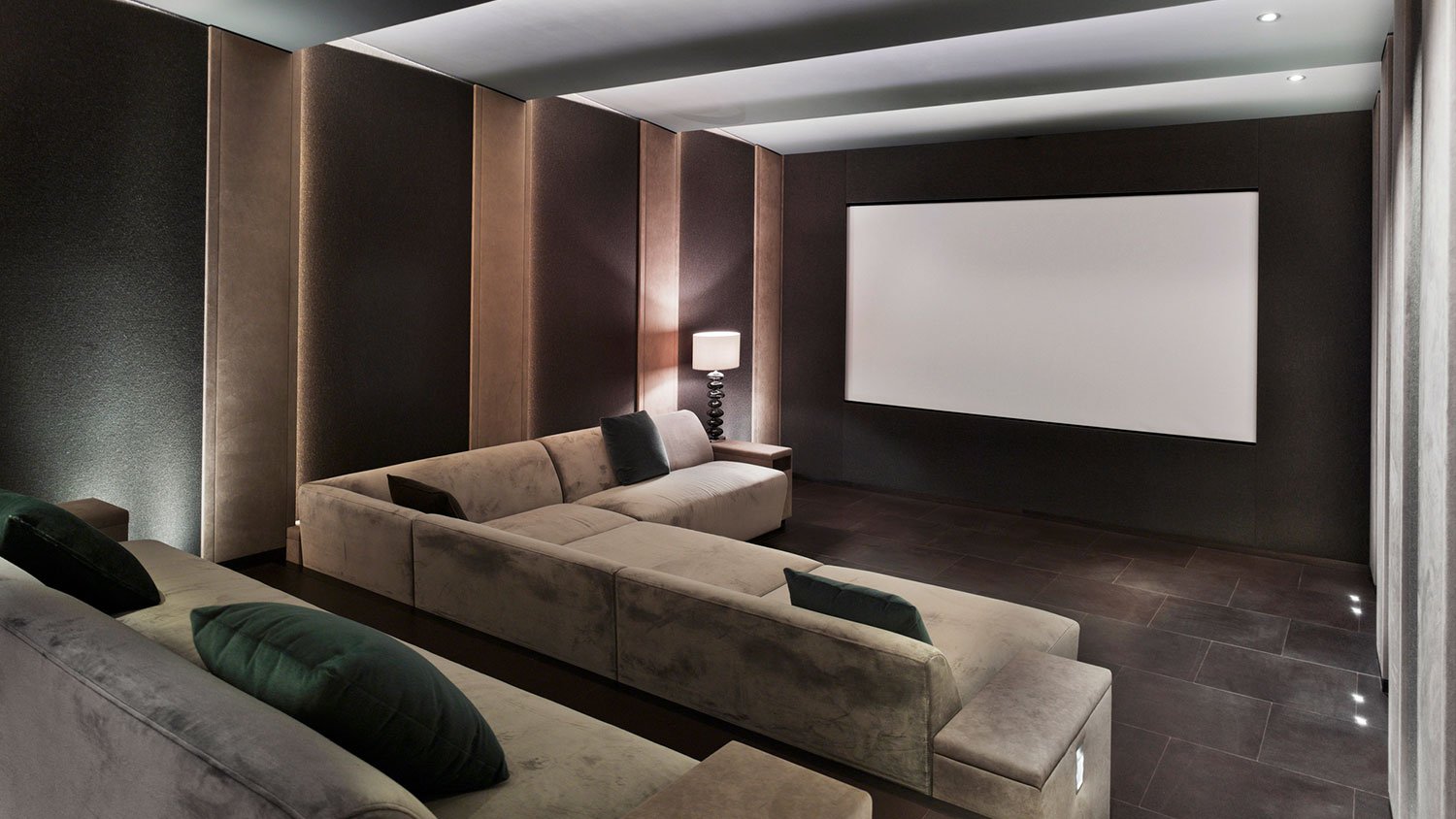

4. Soundproof Drywall

Though some types listed here are sound dampening, truly soundproof drywall contains more layers than regular drywall. It contains two layers of gypsum instead of one layer and is best used in rooms like home theaters and studios.

Soundproof drywall is significantly more costly—up to 400% more than regular drywall. For that reason, most homeowners opt for thicker standard drywall, which is only marginally more expensive than thinner pieces and still provides better sound dampening.

Best for: Home theaters, garages (think: band practice), and home offices

5. VOC-Absorbing Drywall

VOCs, or volatile organic compounds, are airborne chemicals that, according to the Minnesota Pollution Control Agency (MPCA), can cause eye, nose, and throat irritation, respiratory issues, and even cancer. Some household products contain VOCs, including the following:

• Paint

• Wood stain

• Some cleaning products

• Deodorizers

As the name suggests, VOC-absorbing drywall absorbs airborne VOCs to prevent you and your family from breathing them in. According to most manufacturers, they can work for up to 75 years, even if you paint over the drywall.

VOC drywall is a relatively new product. It’s most common in garages and workshops, where VOCs are more of a concern. It’s quite expensive, so most contractors don’t use it in normal construction.

Best for: Garages, workshops, and art studios

How to Choose Drywall and Drywall Thickness

With so many different types of drywall available, you may wonder how to choose one for your next remodeling project. The first place to start is to consider the drywall’s use and the room in which you will place it. Regular drywall may be appropriate for your bedroom, but you may need green board drywall for your kitchen, basement, or another area where moisture may be present.

You’ll also need to consider any building codes or regulations where you live. Many apartments require Type X drywall for their ceilings to prevent them from collapsing during a fire, while some municipalities call for VOC-absorbing drywall in workshops or garages. Check your local building codes to determine whether you’ll need to hang a specific type of drywall.

Finally, the thickness of the drywall will determine its effectiveness in its application. For example, the thicker your soundproof drywall, the less noise will get through it. Thinner drywall is more flexible, allowing you to use it more effectively on corners and curved walls. However, remember that thicker drywall will be more difficult to cut, possibly making it less budget-friendly.
