For those concrete patios, walkways, and slabs that need to be a few inches higher
Over time, concrete used for patios, walkways, stairs, and even foundations can sink into the ground. This happens for a number of reasons, including ground pressure, movement and settling, and poor drainage. If you have noticed your concrete steps are no longer level with a door or your concrete patio slab is a few inches lower than it used to be, you can raise the concrete with DIY mudjacking.
Also known as concrete lifting or slabjacking, mudjacking is a DIY-friendly technique to fix sinking concrete slabs. The process injects a slurry of concrete below the slab to provide support and lift it to its proper level. Not only does this help you save on the cost of concrete removal, but you also don't waste the cost of the concrete slab you invested in the first place.
This guide will walk you through step-by-step DIY mudjacking or the concrete lifting process, so your concrete sidewalk, patio, driveway, or deck can get back to the right level. And if you’re looking to mudjack a foundation or other structural concrete, leave this task to a professional mudjacking contractor, so they can preserve the structural stability of your home.
Mudjacking requires the use of heavy-duty power tools, including:
Hammer drill with diamond drill bit
Hydraulic slurry pump
Circular saw with diamond blade (optional)
In terms of supplies, you’ll also need:
Gloves
Safety glasses
Face mask
Marking tape
Level
Slurry mix (optional)
Concrete patching compound
Concrete repair caulk
It’s important to work in a well-ventilated area, so concrete dust and fumes don’t build up. If you’re indoors or in an enclosed space, crack a window or use a fan to keep the air flowing.
Finally, because the process involves building up pressure beneath a concrete slab, always stay alert and be aware of your surroundings while mudjacking the slab to avoid injuries from the rising concrete.
When using power tools, always wear gloves for hand protection and safety glasses for eye protection. Wearing a face mask while cutting or drilling into concrete is crucial to avoid breathing in concrete dust.

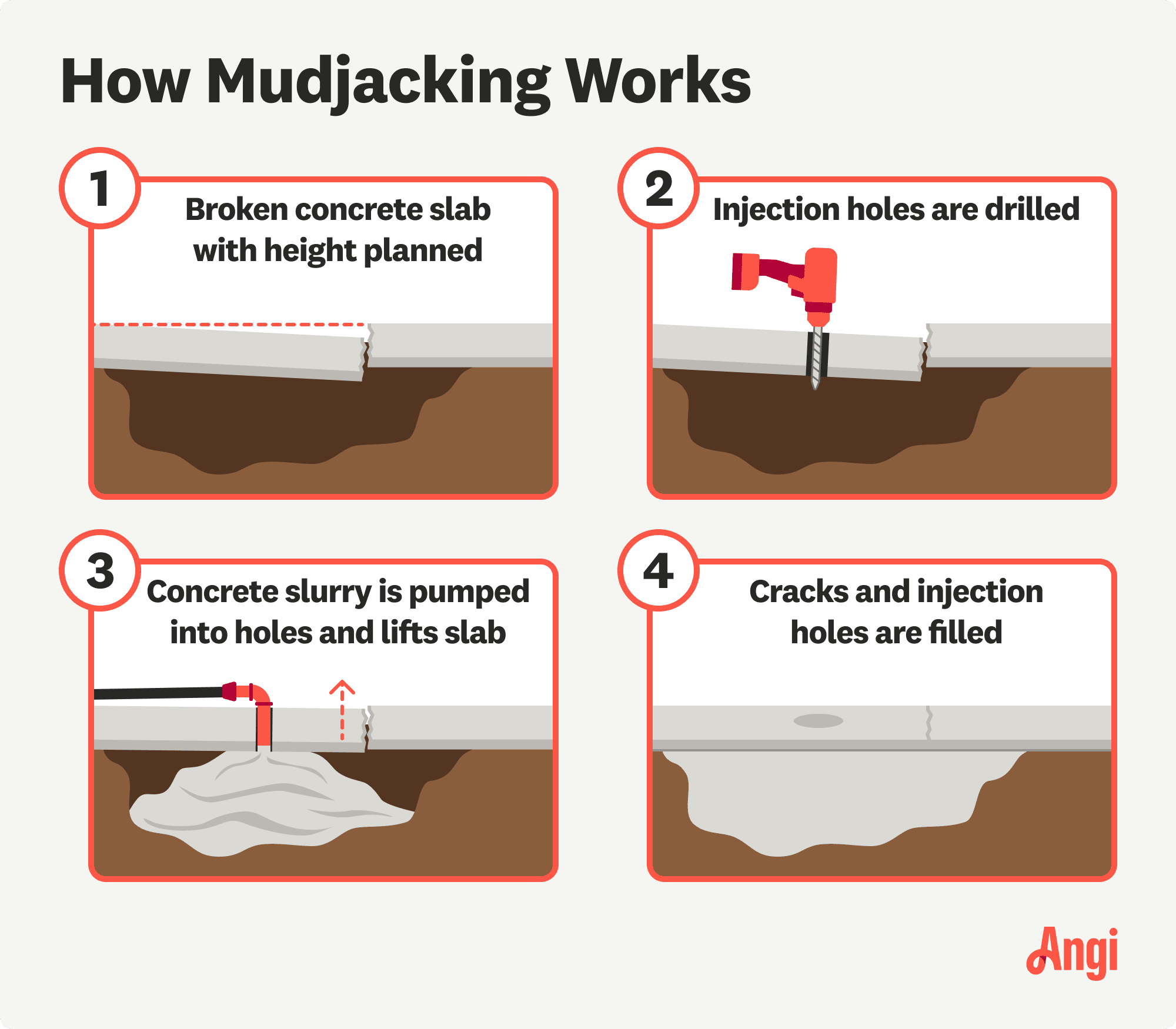

With your safety gear in place and area prepped, you’re ready to begin the mudjacking process. Follow these steps to lift your sunken concrete slab.
Before getting started with mudjacking, be sure you know the desired height for your concrete slab. If you’re raising a section of sidewalk or driveway, you will, of course, want the sunken concrete to be level with the other sections.
If you are raising an entire concrete patio slab or a set of stairs, however, it is a good idea to mark the desired height of the concrete on your home’s foundation with marking tape. This way, you won’t raise the concrete too high or not enough.

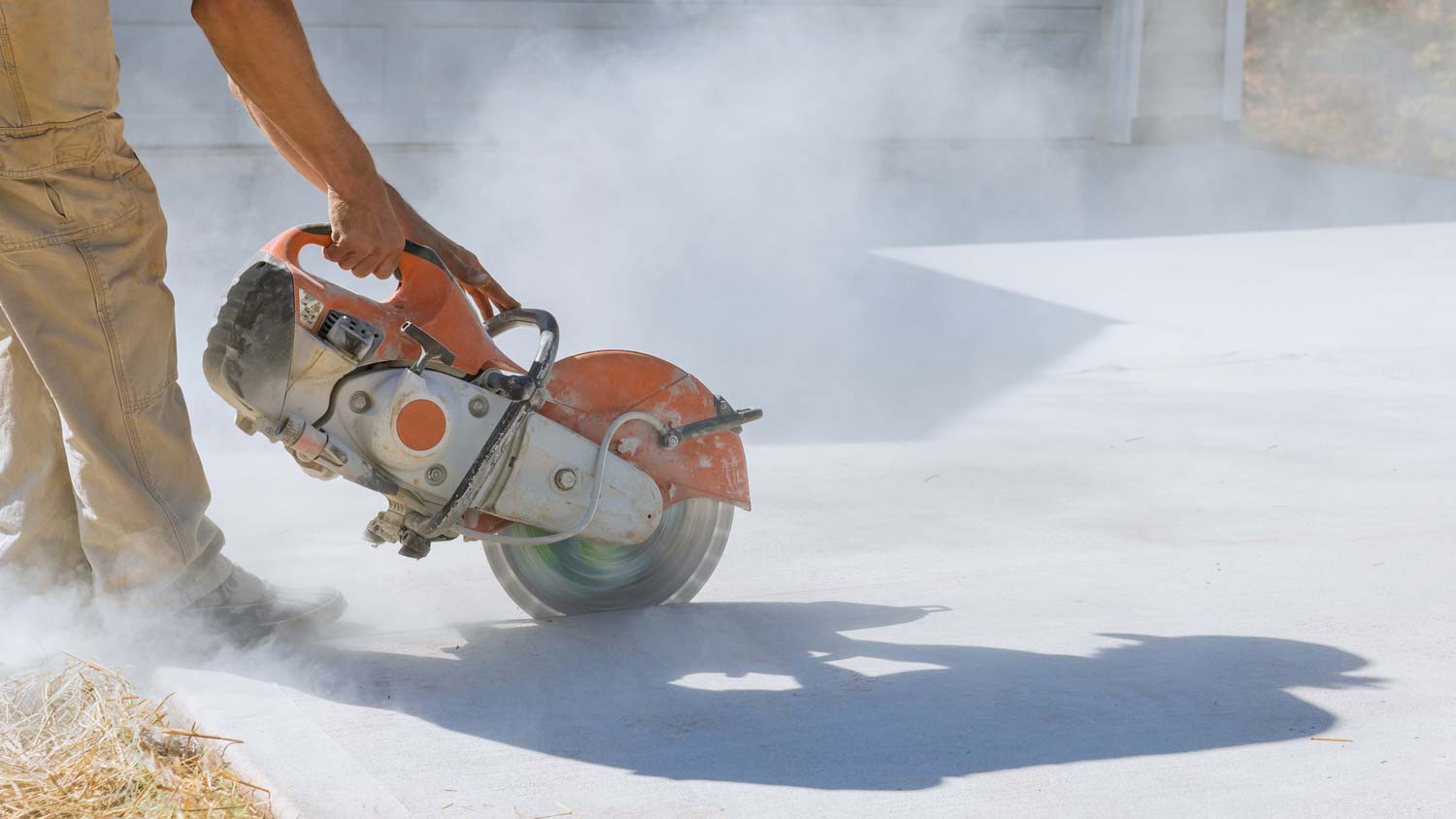

If you only need to raise a section of a concrete sidewalk or driveway, you will need to separate it from any nearby sections. Use a circular saw with a diamond blade to cut the concrete at an existing joint. Fully cut through the concrete so the slab you will be raising is separated.

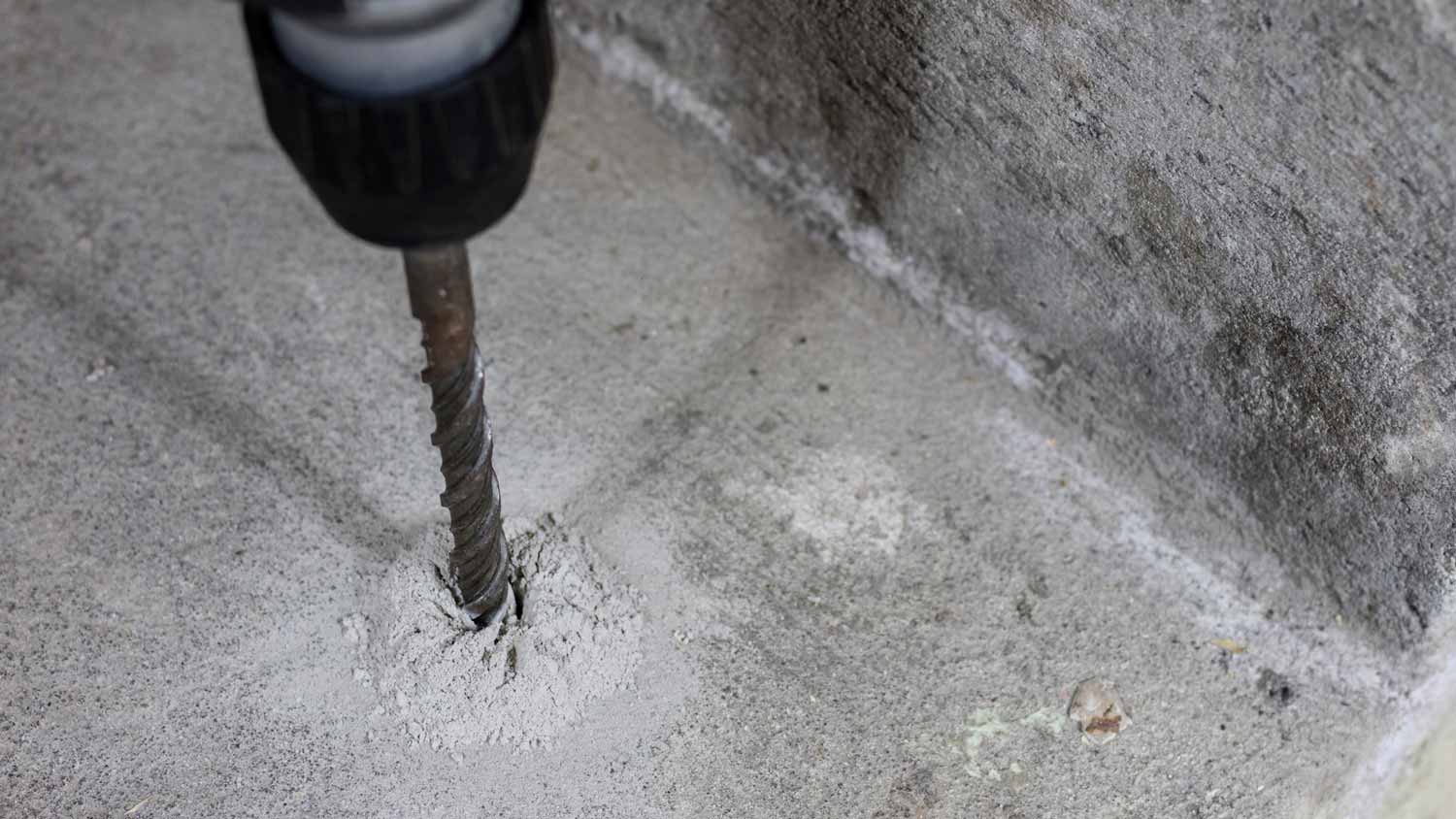

You need to drill holes into the concrete slab for injecting the slurry mixture into. Using a hammer drill and a diamond drill bit, drill several 1- to 2-inch-diameter holes across the surface and all the way through the concrete slab.
If you just need to raise the corner of a slab, drill one or two holes in that particular corner. If you need to raise an entire slab, drill a hole in each corner and a few others across the slab so the slurry mixture can fill in everywhere beneath the concrete, usually every 3 feet or so. Be sure your drilled holes go all the way through the slab and into the dirt or stone below.
Next, you will need to mix or order a mudjacking cement slurry. The slurry is typically made with a combination of water and sand, clay, or topsoil, and limestone dust, or Portland cement. This mixture can be ordered from a concrete supplier or mixed at your property if you have the correct materials available.
If you mix it yourself, make sure the slurry’s consistency is thick like pancake batter, but still pourable. It should be thick enough to provide support but not so thick that it clogs the pump.
Once you have the cement slurry, it should be transferred to a hydraulic slurry pump (this can often be rented) that will inject the slurry into the concrete.

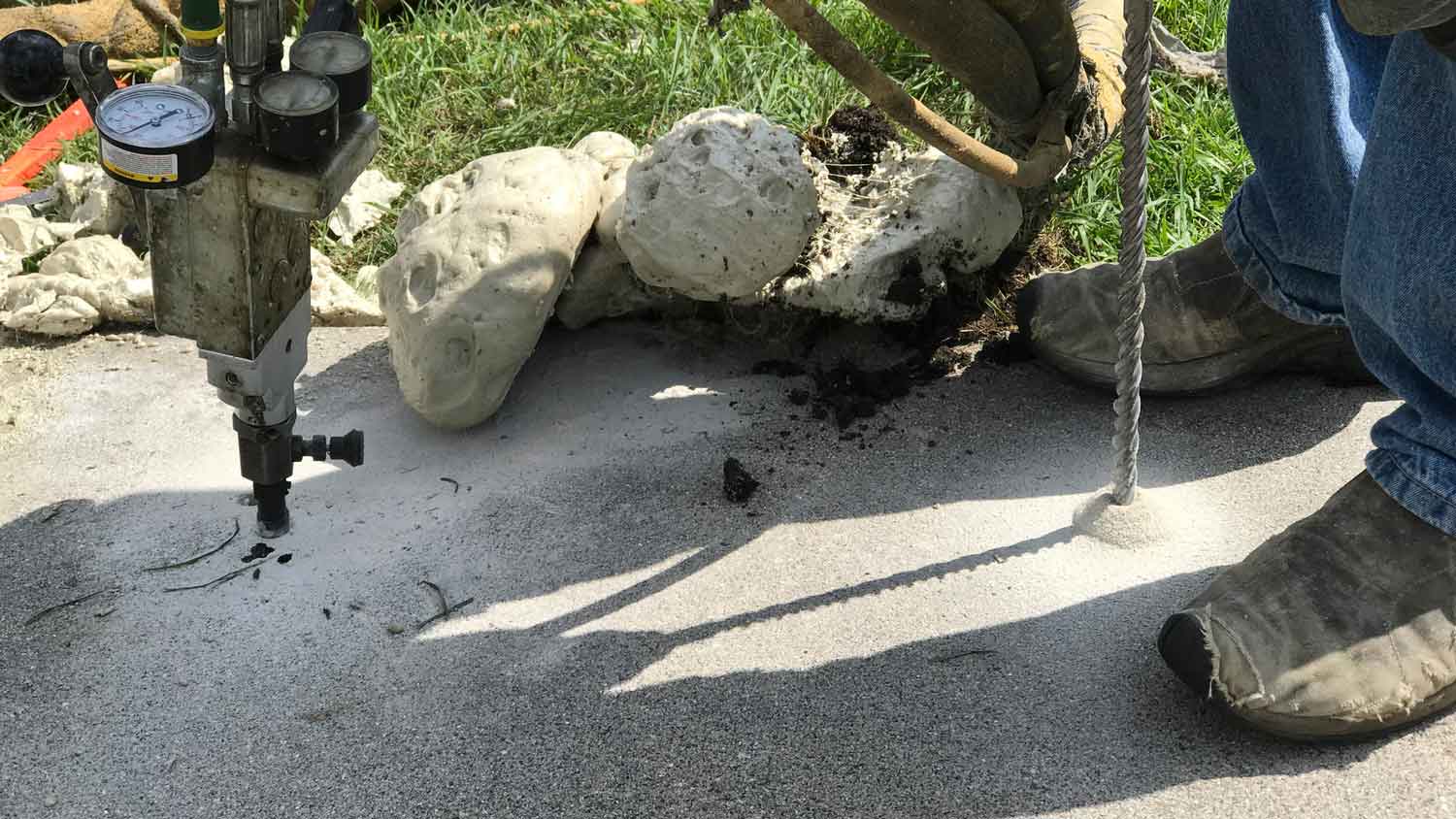

Using the hydraulic slurry pump and the attached nozzle, pump the slurry mixture into each one of the injection holes. Start injecting the mixture at one side of the concrete slab and slowly move to the other side. Fill each hole until the concrete slab begins to lift to the height you determined. Some holes may require more slurry mixture than others to fill the voids beneath.
Be sure not to overfill any of the voids, causing the concrete to lift past the desired height. As you pump, check the level of the slab frequently to ensure it’s rising evenly across the entire surface. Significantly uneven elevation can cause the concrete to crack.
Once every injection hole has been filled with the slurry mixture, take a step back and evaluate the slab. It’s a good idea to have a level on hand during this step to make sure the slab is even.
If the slab is still too low or if certain areas need to be raised further, continue pumping the mixture into those specific injection holes.It’s best to fill slowly and come back to an injection hole later if it needs more slurry.

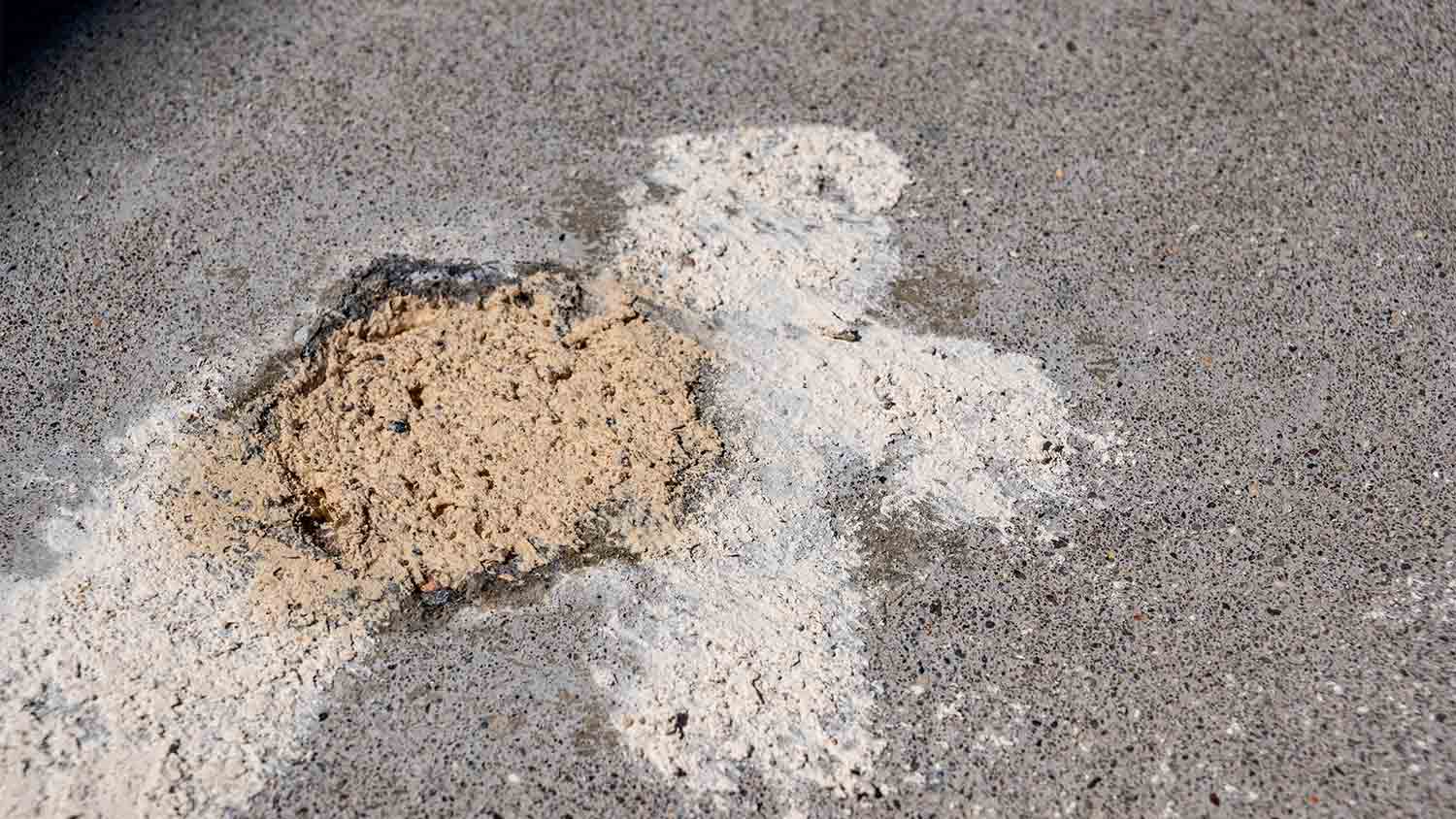

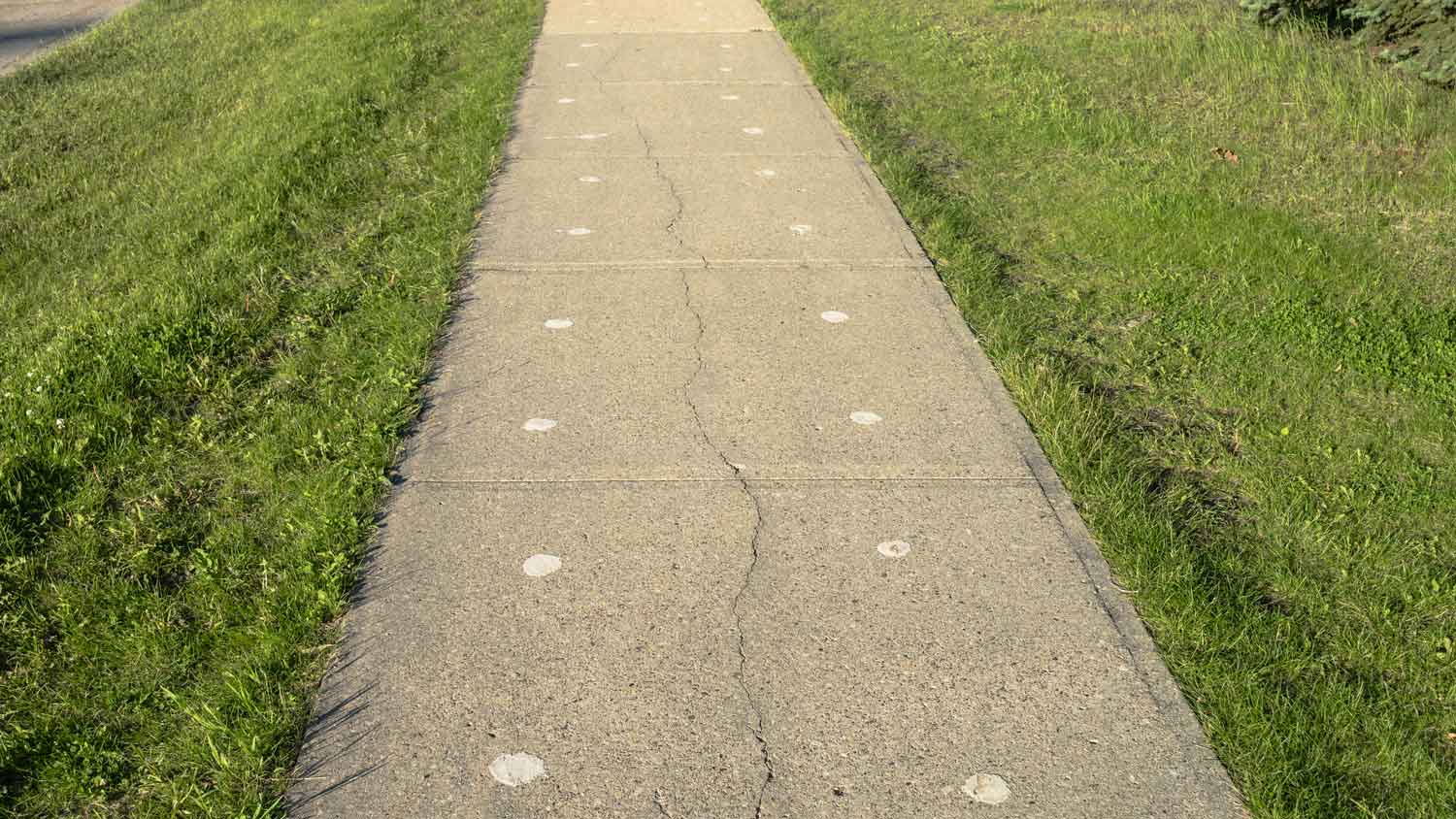

Once your concrete slab reaches the desired height, you can stop pumping in the slurry and rinse down the entire surface gently with a hose. Patch the injection holes and any concrete cracks with a concrete patching compound or repair caulk.
After filling the holes, you may want to use a trowel to smooth the surface for a seamless finish.
With the mudjacking process finished, the material beneath the slab needs to dry. It’s typically okay to walk on the slab right after the material has been installed, but avoid placing heave loads (like vehicles) on the slab for 24 to 72 hours.
Mudjacking a concrete slab is a highly complex DIY project that requires special tools and skills. It costs between $1 and $5 per square foot to DIY. That being said, this price does not account for all the related tools and the possibility you'll need to pay for repairs should something go wrong.
You will likely need to rent all the equipment for the job, which includes a concrete circular saw, hammer drill, and a hydraulic slurry pump. Renting these tools and purchasing the necessary supplies could cost anywhere from $100 to $500. You’ll also need to consider the cost of the concrete slurry (you’ll save money if you mix your own instead of buying it from a concrete supplier, though).
If you don’t already have the required tools for this project or you’ve never worked with a concrete mixture, leave this task to the professionals. The cost of mudjacking while hiring a professional is anywhere from $3 to $6 per square foot. While the project may end up costing a bit more, a local concrete mudjacking contractor will make sure your concrete slab is raised to your desired height, completely level, and does not crack during the process.
Lastly, it's crucial to check with local building codes before attempting mudjacking on your own. If the area falls into a right-of-walk sidewalk or your state has strict DIY construction laws, you may be required to call a pro for such a large project.
Depending on your needs, budget, adn the condition of the concrete, you may want to explore alternatives.
Polyurethane foam provides concrete leveling with a process called polyjacking. While the process is similar to mudjacking, polyjacking may be easier than mudjacking because other materials may be easier to inject below the concrete slab, requiring less disruption to the area. However, it tends to be more expensive.
Grout jacking involves injecting a grout mixture under the slab. The grout is denser and stronger than the slurry used in mudjacking, making it better for heavier structures or slabs with significant load-bearing needs. It’s more expensive than mudjacking and, since it usually involves working with larger structures, is best handled by pros.
| Mudjacking | Polyjacking | Grout jacking |
|---|---|---|
| Uses slurry mixture of water, soil, and cement | Uses expanding polyurethane foam | Uses dense grout mixture |
| $500–$1,000 | $900–$2,000 | $1,000–$3,000 |
| Best for sinking slabs with minimal cracks | Best for quick fixes with less disruption | Best for heavier slabs or load-bearing areas |
In cases where the concrete is severely damaged or cracked, replacing the concrete slab entirely may be the best option. While slab replacement is more labor-intensive and costly, it provides a long-term solution when damage is beyond what mudjacking or other injections can repair.
There are several factors that can send your concrete sinking into the ground like the house in “Poltergeist.” Poor installation, drainage issues, tree roots, or ignored decay can all lead to losing structure support. Here are seven tips for keeping the slab above ground:
Ensure proper concrete mixing when installing the slab. The wrong concentration of water or an incorrect curing time can lead to structural issues. And remember, cement versus concrete is easy to confuse for one another.
Install a proper subbase of sand or aggregate below your concrete slab for support. The subgrade (the compacted soil below your subbase) should also be level and strong.
Test your soil composition before installing a concrete slab.
Address potential drainage issues, particularly when water pools on or around the slab.
Fortify large cracks or the space between slabs with backer rods and polymeric sand.
Repair concrete cracks as soon as they appear to keep the slab from sinking on one side.
Address impeding tree roots that could shift the slab over time.
Call in a foundation or concrete repair contractor in your area to assess the underlying issues and help stabilize your slab.
Yes, expanding foam (also known as polyurethane foam) can lift concrete. This approach, called polyjacking, involves injecting the foam rather than concrete slurry to fill voids and raise the concrete slab back into place. It’s often faster and requires smaller drill holes than traditional mudjacking, though it may come at a higher cost. Some contractors also prefer polyjacking over mudjacking for more damaged and delicate slabs.
Repairing a concrete slab with mudjacking will last between five and 10 years on average. However, the number also depends on the cause of the issue in the first place. If the concrete slab is damaged because of drainage issues, it's important to fix the root cause of the problem to keep the structure from sinking further over time.
Mudjacking is your best bet for leveling concrete on a tighter budget. It’s less expensive than foam or grout mixture. For smaller, surface-level issues, you could also use a self-leveling compound, which creates an even surface over existing concrete—it’s a budget-friendly option suitable for DIY enthusiasts.
