Install a three-way switch and never stumble in the dark again
If you’re tired of running across the garage in the dark, a three-way switch can be the answer. A three-way switch is larger than a single pole switch and has three screw terminals for separate wiring connections and a ground connection. Three-way switches control one fixture from two different light switches—you might have one at the top and bottom of the stairway or at either end of a long hallway. Let’s take a closer look at how three-way switches work, plus the pros and cons of this type of electrical switch.
A common type of light switch, three-way switches control lights from two different locations. They have one additional connection that attaches to more wires, giving you the option to access a third point on the circuit it’s connected to. This means you can control one electronic device (like a ceiling light) from two locations.
When reaching for a switch, there are a few clear signs that it’s three-way switch:
The toggle isn’t labeled “on” and “off”
Unscrew the wall plate and see that the switch has three terminal screws and a ground screw (usually two are light in color, a dark-colored screw is the common, and the ground screw is green).
To put it simply, a single light switch (or single-pole switch, as electricians call it) is a switch labeled “on” or “off” that controls one light. A three-way switch controls one light from two different wall switches.
These aren’t labeled “on” or “off” because the circuit is complete when both switches are facing the same direction and the light will be on. When the switches are in opposite positions, the circuit is interrupted and the light goes off.
The first thing you may notice when looking at electrical wiring connections on a three-way switch is that there are more screws on it than on single-pole switches. Each screw or screw terminal is crucial for the switch to operate.
Green screw: This part is the grounding or ground screw that provides an electrical pathway for stray current back to the earth should something disrupt the normal flow. The grounding screw is located on its own on the metal part of the switch.
Black screw: The black or dark-colored screw is the common wire terminal. The function of the common wire depends on where the switch is located in the lighting circuit. You can think of this screw as the place to attach the hot wire. However, the hot wire may be coming from the home's electrical panel, or it may be on its way to the light fixture.
Two remaining screws: The other screws are terminals for the traveler wire. These screws will be lighter in color than the common screw, usually brass-colored, and are located opposite each other on the switch body. The traveler wires carry electrical current between two switches in a three-way switch configuration. The traveler wire is in use at any given time, depending on the positions of the wall switches.
To put it simply, a single light switch (or single-pole switch, as electricians call it) is a switch labeled “on” or “off” that controls one light. A three-way switch controls one light from two different wall switches.
These aren’t labeled “on” or “off” because the circuit is complete when both switches are facing the same direction and the light will be on. When the switches are in opposite positions, the circuit is interrupted and the light goes off.
Now that you know how a three-way switch works, lets look at the other common types of switches so you can decide which best suits your needs.
A two-way switch is the most common switch you’ll find in your home, used to control a single device that requires electricity. Whether you’re getting a single-pole or double-pole light switch, installing a two-way switch is often a simple DIY you can attempt if you have some electrical experience.

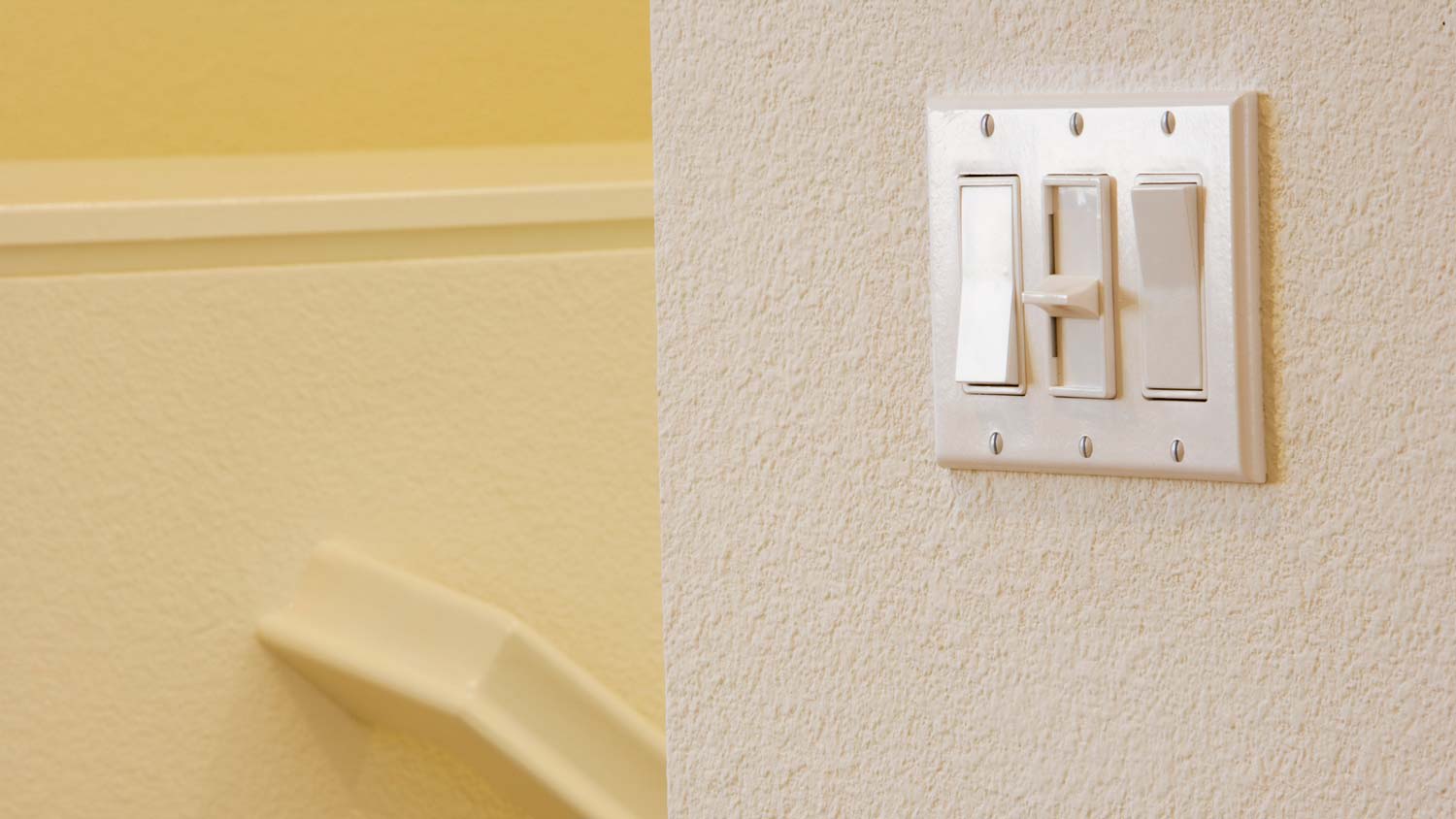

A three-way switch is your best bet if you need to control the same electronic device from two separate areas in your home. The most common location for three-way switches is at the top and bottom of a staircase, so you can turn the lights on and off, regardless of which floor you’re on.
Have an extra long hallway or want to control one light source from multiple rooms in your home? Then a four-way switch is for you. Much like the three-way switch, this allows for one more connection point, giving you access to a single device from up to three switches.
The first thing you may notice when looking at electrical wiring connections on a three-way switch is that there are more screws on it than on single-pole switches. Each screw or screw terminal is crucial for the switch to operate.
Green screw: This part is the grounding or ground screw that provides an electrical pathway for stray current back to the earth should something disrupt the normal flow. The grounding screw is located on its own on the metal part of the switch.
Black screw: The black or dark-colored screw is the common wire terminal. The function of the common wire depends on where the switch is located in the lighting circuit. You can think of this screw as the place to attach the hot wire. However, the hot wire may be coming from the home's electrical panel, or it may be on its way to the light fixture.
Two remaining screws: The other screws are terminals for the traveler wire. These screws will be lighter in color than the common screw, usually brass-colored, and are located opposite each other on the switch body. The traveler wires carry electrical current between two switches in a three-way switch configuration. The traveler wire is in use at any given time, depending on the positions of the wall switches.

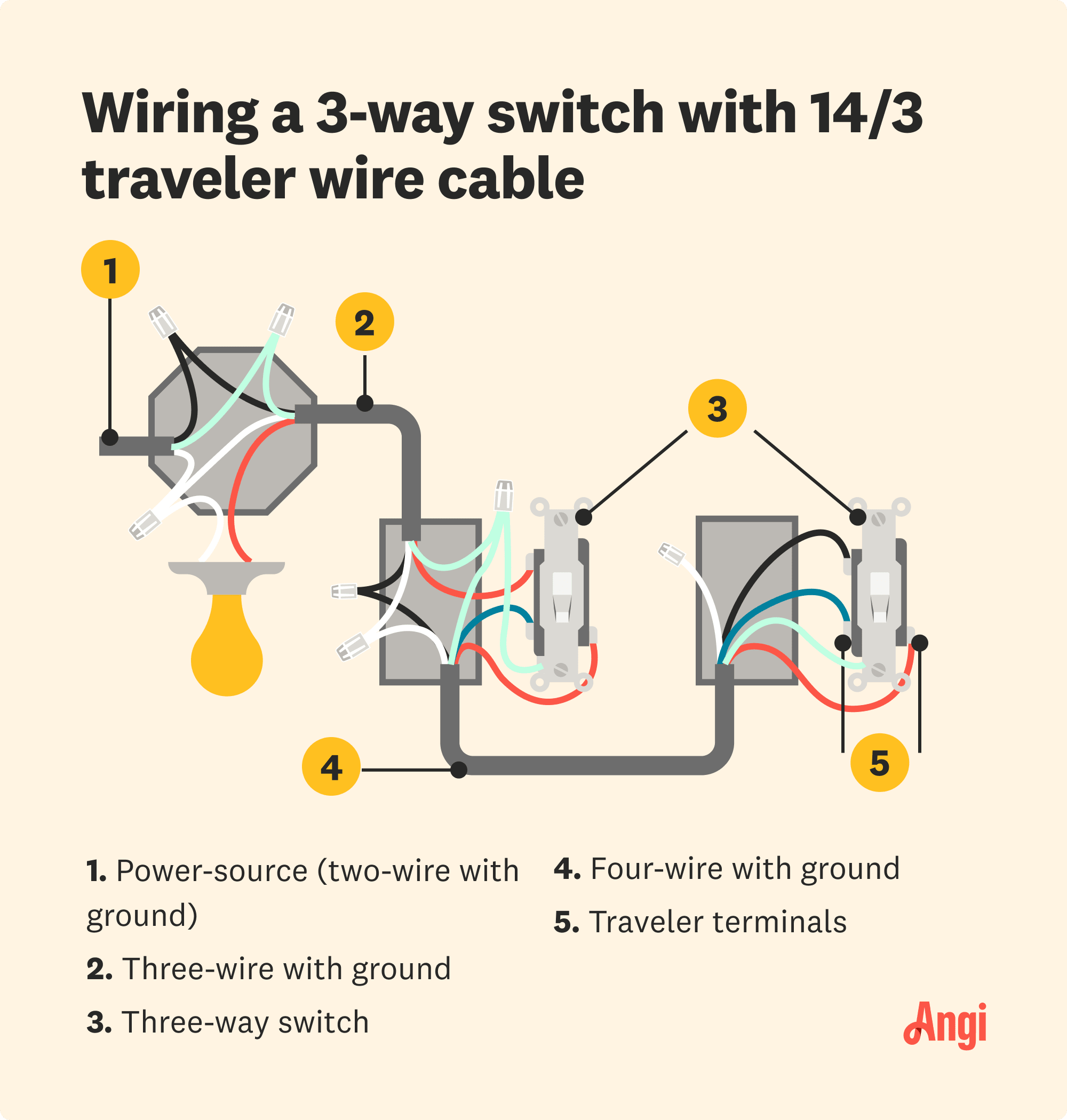

A three-way switch has an extra red wire in that sheath, and the switch has three terminal screws. The hot wire carries the power from the source and is marked with a dark-colored screw. It can connect with either of the other terminals, called travelers. Those two travelers are interchangeable and connect to the other switch.
The inner workings of a single-pole switch are black and white—literally. The switch contains a black wire and a white wire within the insulated coating. When you flip the light on, the terminals connect. Flipping the switch the other way disconnects the terminals and the light goes off.
The grounding screw on a three-way switch is typically green-colored and lives directly on the metal strapping surrounding the switch body. For reference. Grounding screws are typically used in junction boxes to provide solid, stable grounding. In conjunction with a ground wire, it provides an escape path, of sorts, for stray electrical current.
An electrical circuit works to stay in balance between hot and neutral. When something like a loose wire, power surge, or other problem disrupts the normal electricity flow, the extra current needs somewhere to go so it doesn't damage electronics or create a hazard. The grounding screw and accompanying wire offer a path of least resistance back to the earth to dissipate into the ground outside of the home.
Considering installing a three-way switch? Review these pros and cons first.
If you would really like to turn off your bedroom light without getting out of bed, installing another switch can make your life easier. And as far as home improvement projects go, this one is low-cost. The average cost of installing a light switch is $145, but you should expect to pay more for a three-way switch.
Plus, three-way switches are typically a safe and reliable way to manage large electrical loads, making it an ideal feature for a home office or a kitchen.
One setback of three-way switches is that adding a new electrical box and switch plate might require some wall repair because you have to cut into the drywall during installation. Aside from drywall repair, you’ll likely need to touch up or repaint the wall area.
In addition, this project requires hazardous electric work that isn’t DIY-friendly, meaning you’ll need to hire a professional electrician to complete this project. That will increase the labor and project cost of installing this type of switch.
Here’s the thing: working with electricity is dangerous work. One wiring mistake could be hazardous to your home and personal safety. It’s always best to call a professional for any electrical work. Hire a local electrician who has the skills, specialized tools, and experience necessary to install a three-way switch safely and successfully.
You can expect to pay about $5 to $15 for the switches and $100 to $200 to have them professionally installed by an electrician. This is a relatively easy job for an electrician, so if you have other work that needs to be done, you can potentially save money by bundling projects together. You might also want to install a three-way switch when adding or replacing a light fixture or installing a ceiling fan.
Keep in mind that hiring an electrician costs $50 to $100 per hour, depending on the job type and size. Most electricians charge $150 for the first hour of work, which is why combining electrical tasks in one visit is a recommended strategy.
A two-way switch is also called a single-pole or single-throw switch. These switches only have an on-and-off function and only control a single light or series of lights wired together. A three-way switch has no “on” or "off” position and works with a second switch in the circuit to control a single light or light series from two locations.
Three-way switches work in pairs, allowing an operator to control a single light or series of lights from two separate switch locations. Most often, a three-way switch controls a light or light series in a single room.
Three-way switches are only replaceable with three-way switches. A single-pole switch won't work if you replace one or more of a pair of three-way switches. By electrical code, three-way switch configurations are necessary at the top and bottom of a staircase between residential floors.
Yes, it’s possible to use a three-way switch as a two-way switch. You can use a three-way switch as a two-way switch by bypassing one of the traveler wires and using only one of the available traveler switch terminals.
