Learn a French drain’s flow capacity
Under optimal conditions, a French drain can handle around 75 gallons per minute (GPM).
The ability of a French drain to handle water depends on its design, including pipe diameter, depth, and slope.
Factors impacting a French drain’s effectiveness include proper installation, pipe diameter, slope, soil type, trench dimensions, and regular maintenance.
If you’re dealing with major drainage issues on your property, you might be wondering how much water a French drain can handle. A well-designed French drain, with the ideal trench dimensions, pipe size, and slope, can manage significant water flow, averaging about 75 gallons per minute (GPM). However, the drainage capacity varies based on several factors, such as soil drainage, proper installation, and more. This guide will help you determine your French drain’s drainage capacity and when to hire a French drain specialist for help managing it.

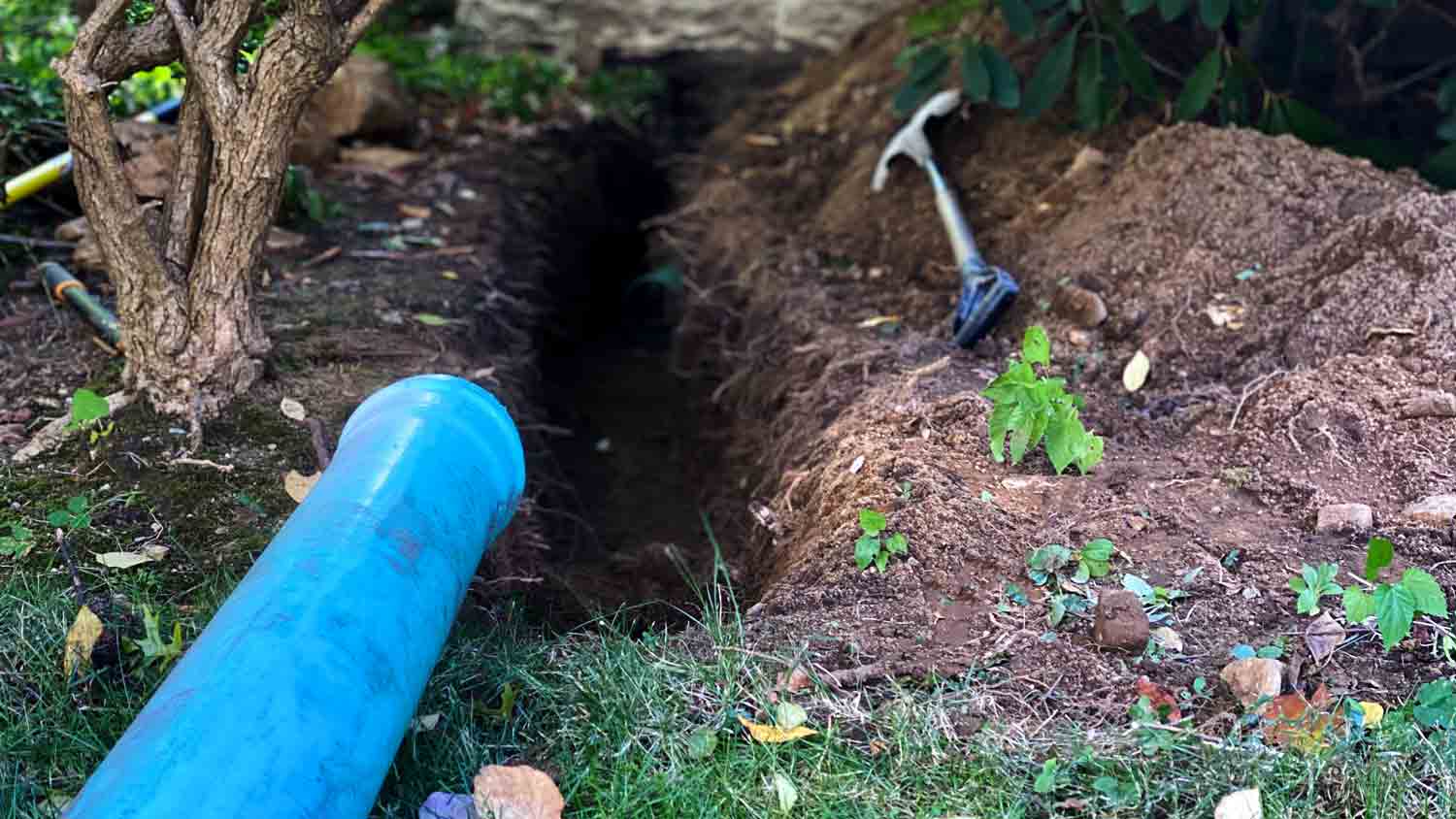

A French drain is an underground drainage system designed to redirect water away from a property, preventing issues like water damage to a home’s foundation or pooling water in the landscape. The system consists of a trench filled with gravel and a perforated pipe. The pipe, which has small holes to allow water to enter at any point, is placed at the bottom of the trench and sloped slightly downward to facilitate water flowing away from the property.
A French drain’s ability to handle water effectively depends on its design, including pipe diameter, the drain’s depth, and the slope. Consider these average French drain capacities for reference:
| Pipe Size in Inches | Slope | Drainage Capacity |
|---|---|---|
| 4 inches | 1% slope | 5GPM or 300 gallons per hour |
A small French drain with a 4-inch pipe, a 1% slope, and a 1’x1’ gravel trench can handle approximately 5 GPM or 300 gallons per hour.
| Pipe Size in Inches | Slope | Drainage Capacity |
|---|---|---|
| 6 inches | 2% slope | 37GPM or 2,200 gallons per hour |
A medium-sized system with 6-inch pipes, a 2% slope, and a 1’x1’ gravel trench can manage around 37 GPM or 2,220 gallons per hour.
| Pipe Size in Inches | Slope | Drainage Capacity |
|---|---|---|
| 6 inches | 2% slope | 75GPM or 4,500 gallons per hour |
A high-capacity system with 6-inch pipes, a 2% slope and a 2’x2’ gravel trench can handle up to 75 GPM or 4,500 gallons per hour.
These are the main factors that will affect a French drain’s drainage capacity.
Proper installation by a local French drain specialist is crucial for a French drain to function properly. On top of the manual labor of digging the trench, there are design and logistical concerns, such as whether the perforated French drain pipe’s holes are up or down, and where to place the exit point so water doesn’t drain into neighboring properties. To ensure your French drain is designed for maximum efficiency and installed properly, always seek out a specialist who installs French drains.
The larger the pipe, the more water it can transport at once. For example, a 4-inch diameter pipe can handle over three times the flow of a 3-inch pipe. Typically, French drains use 4-inch or 6-inch piping.
The ideal slope for a French drain is 1% to 2%. A pipe slope of 2% will carry water about twice as fast as a 1% slope. Consult a local French drain specialist to determine the slope level for your drainage system based on your yard’s natural slope and the amount of water the drain needs to manage.
Well-draining soils like sandy or loam soils will allow water to reach the pipe perforations quicker, resulting in a faster drainage capacity, On the other hand, heavy clay-based soils drain poorly and may not be a good fit for a French drain installation. Consider testing your soil before installing a French drain to ensure it can accommodate that type of drainage system.
Wider and deeper French drain dimensions can store more incoming groundwater. This allows for better drainage capacity as the water moves through the trenches and away from the property. The standard French drain dimensions are a 4-inch perforated pipe running 5 to 10 feet.
If a French drain is clogged with mud, debris, or other buildup, that blockage can severely hinder the drain’s capacity or prevent it from draining altogether. It’s crucial to keep
up with annual French drain maintenance to clear clogs and other issues before they cause a more serious problem. Along with that, inspecting your French drain regularly, especially after severe weather, is key for ensuring optimal performance.
